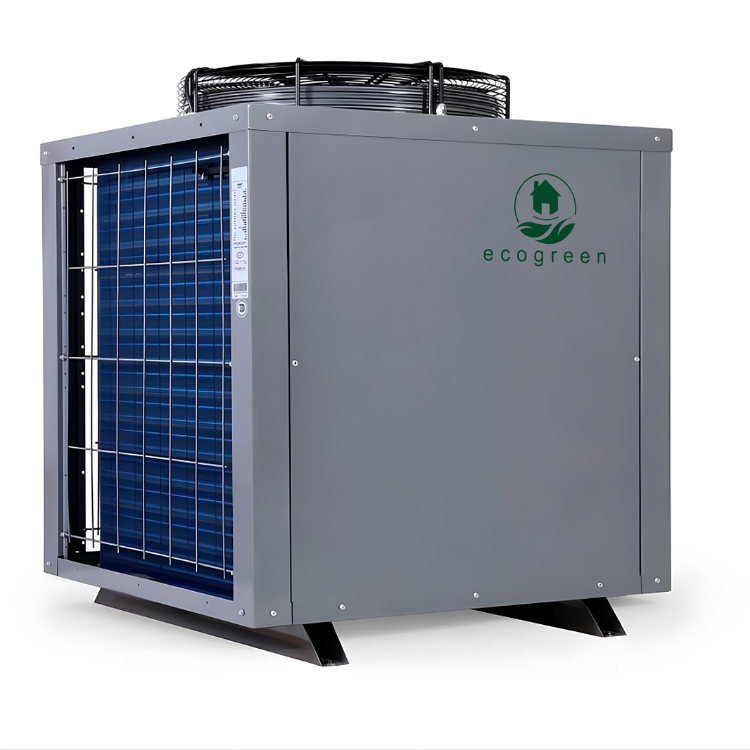

Commercial Ecogreen Heat Pump Water Heater | KX180S EP-2/A
Finding a reliable, high-capacity hot water system for your hotel, resort, or commercial facility in Nepal can be challenging. Traditional diesel boilers are expensive to run. Solar water heaters are weather-dependent. Standard electric geysers are inefficient at scale. The KX180S EP-2/A commercial heat pump water heater solves all three problems — delivering continuous, high-volume hot water at a fraction of the operating cost, regardless of weather or time of day.
At Nepal ecogreen, we have been supplying and installing commercial heat pump systems across Nepal and Bhutan since 2009. With over 900 successful installations in hotels, resorts, factories, and institutions, we know which systems perform and which ones fail. The KX180S EP-2/A is among the most dependable commercial heat pump units we supply — and this page gives you everything you need to know about it.
KX180S EP-2/A Technical Specifications
The following table outlines the key technical specifications of the KX180S EP-2/A commercial heat pump water heater:
| Specification | Details |
|---|---|
| Model | KX180S EP-2/A |
| Type | Commercial Air-Source Heat Pump Water Heater |
| Heating Capacity | 18 kW |
| COP (Coefficient of Performance) | 4.0 (400% efficiency) |
| Power Supply | 380V / 3-Phase / 50Hz |
| Refrigerant | R410A |
| Operating Ambient Temperature | -7°C to 43°C |
| Outlet Water Temperature | Up to 55°C |
| Design | Single Package (All-in-One Unit) |
| Condenser Type | Spiral Double-Wall Tube-in-Tube |
| Reversing Valve | Four-Way Reversing Valve |
| Water Return System | Built-in |
| Control System | Intelligent Digital Controller / Cloud Control |
| Certifications | CE, CCC, ISO 9001 |
| Suitable Applications | Hotels, Resorts, Hospitals, Factories, Hostels, Apartments |
A COP of 4.0 means the KX180S EP-2/A produces 18 kW of heat while consuming only 4.5 kW of electricity. Compare this to a standard electric boiler (COP 1.0) or even a high-efficiency gas boiler (COP ~0.9). For every Rs. 1 you spend on electricity with this heat pump, you would need to spend Rs. 4 or more to produce the same heat with a traditional heater.
Key Features of the KX180S EP-2/A
The KX180S EP-2/A is not simply a larger version of a domestic heat pump. It is purpose-engineered for the demands of commercial hot water production — where reliability, efficiency, and continuous operation are non-negotiable.
⚡
400%+ Energy Efficiency
With a COP of 4.0, the KX180S EP-2/A extracts heat from surrounding air and transfers it to water — consuming only 25% of the energy a conventional electric water heater would use for the same output. This translates directly into lower electricity bills every single month.
🌁
Wide Operating Temperature Range
Engineered to operate in ambient temperatures from -7°C to 43°C, the KX180S EP-2/A works reliably through Nepal’s cold winters and hot summers alike — from the Terai lowlands to Kathmandu’s valley temperatures and cooler hill regions.
🛡
Single Package Design
The all-in-one unit design combines the compressor, heat exchanger, fan, and controls in a single compact casing. This simplifies installation, reduces plumbing complexity, and minimises the space required on your rooftop or plant room.
🔄
Spiral Double-Wall Tube-in-Tube Condenser
The high-efficiency spiral double-wall tube-in-tube condenser ensures maximum heat transfer between the refrigerant and water circuits. This design also provides enhanced safety — in the rare event of a leak, the double-wall prevents refrigerant contamination of the water supply.
🔌
Four-Way Reversing Valve
The four-way reversing valve gives the system exceptional operational flexibility and reliable reversibility of the refrigeration cycle. It also contributes to the unit’s stable performance across a wide range of ambient conditions found throughout Nepal.
📷
Built-in Water Return System
The integrated water-return system ensures that hot water is always immediately available at the tap — without waiting for it to heat up from cold. This is especially valuable in hotels and resorts where guest satisfaction depends on instant hot water at any time of day or night.
📱
Intelligent Cloud Control
The KX180S EP-2/A features an advanced digital control panel with cloud connectivity. Facility managers can monitor water temperature, system status, energy usage, and fault codes remotely — reducing the need for on-site management and enabling faster fault response.
🌿
Eco-Friendly R410A Refrigerant
R410A is a high-performance, ozone-safe refrigerant that offers excellent thermodynamic properties at Nepal’s operating temperatures. It provides more stable pressure characteristics than older refrigerants, contributing to the compressor’s longer service life.
Who Is the KX180S EP-2/A For?
The 18kW heating capacity of the KX180S EP-2/A makes it ideal for commercial and semi-industrial facilities with significant daily hot water requirements. Below are the primary application categories where this unit excels in the Nepali context:
Hotels & Resorts
20–60 room properties needing 24/7 hot water
Hospitals & Clinics
Hygienic continuous hot water for wards
Hostels & Colleges
High-volume morning-peak hot water
Apartments
Centralised hot water for residential blocks
Factories & Industry
Pashmina, dairy, laundry, food processing
Salons & Spas
Continuous hot water for treatment rooms
Hotels and Resorts in Nepal
Hot water availability is one of the most critical factors in hotel guest satisfaction reviews in Nepal. A single hot water failure during peak morning hours can result in multiple negative reviews. The KX180S EP-2/A, with its built-in water-return system and 18kW of continuous heating output, ensures that hot water is always available at every tap and shower — even during the busiest check-out morning or a cold winter night in Kathmandu, Pokhara, or Chitwan.
Multiple KX-series units can also be cascaded together for larger properties of 60 rooms or more, giving you modular scalability without requiring a complete system overhaul as your business grows.
Hospitals and Healthcare Facilities
Hospitals require hot water that meets hygiene standards consistently and reliably. The KX180S EP-2/A delivers water at up to 55°C, which is sufficient for most healthcare hot water requirements. Its double-wall condenser design also ensures that the water circuit is completely isolated from the refrigerant, maintaining water purity — a critical factor in medical environments.
Pashmina Factories, Laundries, and Dairies
Industrial applications in Nepal — particularly Pashmina washing, commercial laundry, and dairy processing — require large volumes of hot water at sustained temperatures. The KX180S EP-2/A’s 18kW continuous output, combined with appropriately sized storage tanks, can feed these processes reliably while cutting the diesel or LPG costs that currently represent a major operational expense for these facilities.
How Much Energy Does the KX180S EP-2/A Save in Nepal?
This is the question that matters most for any commercial buyer in Nepal. The answer depends on what you are currently using to heat water — but in every case, the savings are substantial.
| Current System | Typical Monthly Cost (30-room hotel) | With KX180S EP-2/A | Monthly Saving |
|---|---|---|---|
| Diesel Boiler | NPR 80,000 – 1,20,000 | NPR 15,000 – 22,000 | Up to NPR 98,000/month |
| LPG / Gas Boiler | NPR 55,000 – 85,000 | NPR 15,000 – 22,000 | Up to NPR 63,000/month |
| Electric Geyser Bank | NPR 40,000 – 60,000 | NPR 15,000 – 22,000 | Up to NPR 38,000/month |
These savings are based on real-world data from Nepal ecogreen’s installations across Kathmandu, Pokhara, Chitwan, and other locations. Actual savings will vary depending on your water consumption, tank sizing, ambient temperatures, and existing system configuration. Our technical team provides a free site assessment and savings calculation before installation, so you know exactly what to expect.
KX180S EP-2/A vs. Other Commercial Hot Water Systems
To help you make an informed decision, the table below compares the KX180S EP-2/A against the most common commercial hot water systems currently used in Nepal:
| Feature | KX180S EP-2/A Heat Pump | Diesel Boiler | Electric Geyser Bank | Solar Water Heater |
|---|---|---|---|---|
| Energy Efficiency | 400%+ (COP 4.0) | ~85% | ~95% | 70–80% (weather) |
| Works in Rain / Night | ✓ Yes | ✓ Yes | ✓ Yes | ✗ No |
| Works in Cold Weather | ✓ Down to -7°C | ✓ Yes | ✓ Yes | ✗ Reduced output |
| Carbon Emissions | Very Low | Very High | Low (electric) | Zero |
| Fuel Dependency | Electricity only | Diesel (import) | Electricity only | None |
| Monthly Operating Cost | Lowest | Highest | Medium | Very Low |
| 24/7 Hot Water Guarantee | ✓ Yes | ✓ Yes | ✓ Yes | ✗ No |
| Maintenance Complexity | Low | High | Low | Low |
| Payback Period | 1–2 Years | Ongoing cost | 3–5 Years | 3–6 Years |
As the comparison clearly shows, the KX180S EP-2/A heat pump is the only system that combines continuous operation in all weather conditions, the lowest operating costs, minimal environmental impact, and a fast payback period — making it the most commercially intelligent choice for businesses in Nepal.
Installation of the KX180S EP-2/A in Nepal
Proper installation is critical to getting the maximum performance and lifespan from your KX180S EP-2/A. At Nepal ecogreen, our trained and experienced technicians handle every aspect of the installation process — from site assessment to commissioning.
Site Assessment
Before installation, our technical team visits your property to assess daily hot water demand, existing tank capacity and condition, available space for the outdoor unit, electrical supply (380V three-phase), water source quality, and plumbing configuration. This assessment ensures the KX180S EP-2/A is correctly matched to your requirements.
Installation Process
The single-package design of the KX180S EP-2/A simplifies installation significantly compared to split systems. Our typical installation involves positioning the unit on a structurally sound surface (rooftop, ground slab, or plant room), connecting to the existing hot water storage tank, connecting the three-phase power supply, setting up the control system and cloud monitoring, and commissioning and test-running the system.
Most standard installations are completed within one to two days, minimising disruption to your facility’s operations.
Compatibility with Existing Systems
The KX180S EP-2/A integrates smoothly with most existing hot water storage tanks and plumbing configurations. If your existing tank is in good condition and appropriately sized, our team can often retain it, reducing overall installation cost. We also advise on optimal tank sizing to maximise the heat pump’s efficiency and ensure there is always sufficient hot water buffer for peak demand periods.
Yes — and it is actually one of the most efficient combinations possible in Nepal. Solar collectors can pre-heat the water entering the heat pump storage tank, reducing the temperature differential the heat pump needs to overcome. This pushes the effective COP even higher — sometimes exceeding 5.0 — and reduces electricity consumption further. Our team can design this integrated system for your property.
Why Buy the KX180S EP-2/A from Nepal ecogreen?
There are several heat pump suppliers in Nepal, but Nepal ecogreen is the only company that has been exclusively focused on heat pump technology since 2009 — over 16 years of deep expertise that no other supplier can match.
- First heat pump company in Nepal (since 2009): We introduced heat pump technology to Nepal and have spent 16 years refining our installation and service processes for Nepal’s specific conditions.
- 900+ successful installations: Across Nepal and Bhutan — in hotels, resorts, hospitals, factories, and residential buildings. Our track record speaks for itself.
- Free site assessment: We never recommend a unit without first understanding your facility’s specific hot water needs. The right sizing is critical to both performance and savings.
- Full installation by certified technicians: Our team handles everything — you do not need to coordinate separate contractors for electrical, plumbing, and equipment installation.
- After-sales support across Nepal: We provide ongoing technical support and maintenance services for every unit we install. We are based in Kathmandu with service reach across the country.
- Genuine products with international certifications: All units we supply carry CE, CCC, and ISO 9001 certifications — giving you confidence in quality and safety.
- Long-term relationship focus: Many of our customers — including KGH Group of Hotels, Hotel Barahi, and Hotel Arya Tara — have placed repeat orders across multiple properties. Our “Always there, because we care” philosophy means we stay engaged long after installation day.
Trusted by Nepal’s Leading Hotels and Businesses
Nepal ecogreen’s heat pump systems are installed and operating in some of Nepal’s most well-known hospitality and commercial properties:
Hotel Barahi
Hotel Arya Tara
Hotel Mirage Regency
Hotel Moon Light
Taleju Boutique Hotel
Yatri Suites and Spa
Lemon Tree Hotel
Hotel Tayoma
Oasis Kathmandu Hotel
Hotel Encounter
Maya Boutique Hotel
Kathmandu Garden Home
Bodhi Boutique
Mount Paradise Spa
Maintenance and After-Sales Care
Like any precision mechanical equipment, the KX180S EP-2/A performs best and lasts longest with regular, professional maintenance. Nepal ecogreen provides comprehensive after-sales care for all units we supply and install.
Recommended Maintenance Schedule
- Every 3–6 months: Clean the evaporator coil and air filter to maintain optimal heat transfer efficiency. Check refrigerant pressure and inspect all electrical connections.
- Annually: Full system inspection by a certified technician — including compressor health check, water flow rate verification, control system calibration, and storage tank inspection.
- As needed: Water quality testing, especially in areas with hard water, to prevent scale buildup inside the condenser, which reduces efficiency over time.
Regular maintenance not only extends the service life of the unit beyond 10 years but also ensures it continues to operate at peak COP — which directly protects your energy savings year after year. Nepal ecogreen’s technical team is always available for maintenance visits and emergency support across Nepal.
Frequently Asked Questions About the KX180S EP-2/A
Q1: What is the KX180S EP-2/A and what is it used for?
The KX180S EP-2/A is an 18kW commercial air-source heat pump water heater manufactured by Tongyi (Guangdong Tongyi Electrical Appliance Co., Ltd.), supplied and installed in Nepal by Nepal ecogreen. It is designed for hotels, resorts, hospitals, hostels, apartments, factories, and other commercial facilities that need large volumes of hot water on a continuous basis.
Q2: How many rooms can the KX180S EP-2/A serve?
The KX180S EP-2/A with an appropriately sized storage tank can typically serve a 20–50 room hotel, depending on daily hot water consumption per room, tank capacity, and occupancy rates. Our technical team will calculate the exact requirement for your property during the free site assessment.
Q3: Does it work during winter in Kathmandu and other cold areas of Nepal?
Yes. The KX180S EP-2/A is designed to operate efficiently in ambient temperatures from -7°C to 43°C. It works reliably through Kathmandu’s winter temperatures, and has been installed and is functioning in locations across Nepal and Bhutan where temperatures drop below 5°C in winter.
Q4: What power supply does the KX180S EP-2/A require?
The KX180S EP-2/A requires a 380V three-phase power supply at 50Hz. This is standard in most commercial and industrial buildings in Nepal. Our installation team will advise on the specific electrical requirements and circuit protection needed for your installation.
Q5: What refrigerant does the KX180S EP-2/A use?
The KX180S EP-2/A uses R410A refrigerant, which is a high-efficiency, ozone-safe refrigerant widely used in commercial heat pump applications. It is available in Nepal and can be serviced by certified HVAC&R technicians.
Q6: How long will the KX180S EP-2/A last in Nepal’s conditions?
With proper installation and regular maintenance, you can expect a service life of 10–15 years. The corrosion-resistant casing and double-wall tube condenser are designed to withstand Nepal’s varying humidity and temperature conditions. Nepal ecogreen provides ongoing maintenance support to maximise unit lifespan.
Q7: Can I connect the KX180S EP-2/A to my existing hot water tank?
In most cases, yes — provided your existing tank is in good condition and is appropriately sized for an 18kW heat pump. Our technicians will assess the tank during the site visit and advise on whether it can be retained or if a new tank is recommended for optimal efficiency.
Q8: Where can I buy and get the KX180S EP-2/A installed in Nepal?
Nepal ecogreen is the supplier and installer of the KX180S EP-2/A in Nepal. We are located at Adwait Marg, BagBazar, Kathmandu. You can contact us at +977 9851214821, +977 9851159618, or email nepalecogreen@gmail.com. We serve customers across Nepal and Bhutan.
